    The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.
    The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

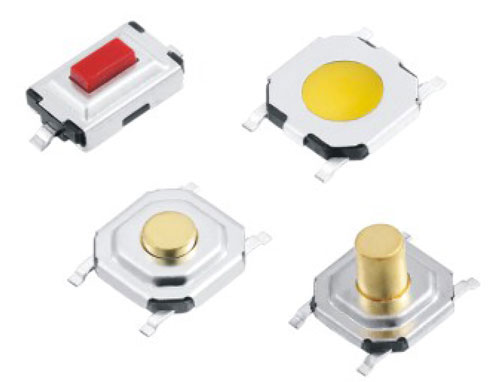

    Thinne Type Tactile Switches RZTM

    •  Rating:12VDC 50mA
    •  Travel:0.25mm
    •  Life:100,000~300,000 cycles
    •  Contact Resistance:100mΩ MAX Initial
    •  Insulation Resistance:100mΩ min. 100VDC
    •  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
    •  Operating Force:A=180gf B=260gf
    •  Operating Temperature:-30℃ ~80℃
    •  Height(ZTM-5):15=1.5mm 17=1.7mm
                                   20=2.0mm 43=4.3mm

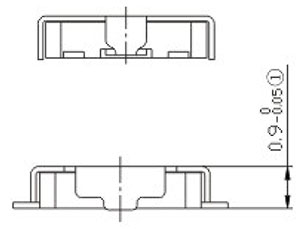

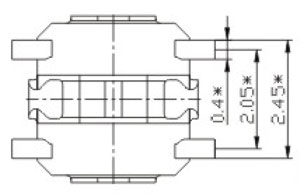

    Thinne Type Tactile Switches RZTM Figure Tactile Switches RZTM Structure Diagram     Switch RZTM Structure Diagram    Thinne Type Switches RZTM Structure Diagram



    Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Life Operating Temperature Height(ZTM-5) Travel Download
    RZTM-385 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTM-3307 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTM-3309 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTM-3312 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTM-325 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTMU-325 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTM-415 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTMF-5 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTMR-5 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTMS-5 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
    RZTMU-5 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 100,000~300,000 cycles -30℃ ~80℃ 15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm 0.25mm NULL
