    The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.
    The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

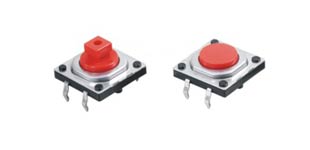

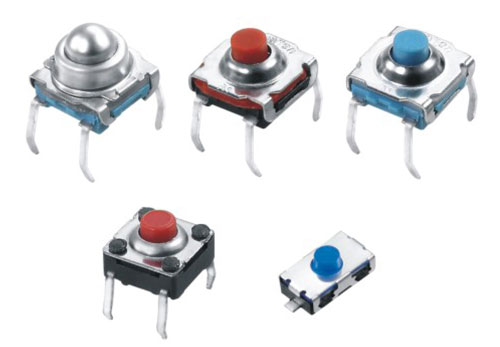

    Dust-proof Tactile Switches RTS(M)(H)W

    •  Rating12VDC 50mA
    •  Travel0.5±0.3mm
    •  Life100,000 cycles
    •  Contact Resistance100mΩ MAX Initial
    •  Insulation Resistance:100mΩ min. 100VDC
    •  Dielectric Strength250VAC(50/60Hz)FOR 1MIN
    •  Operating Force250±50gf
    •  Waterproof Grade:IP6X

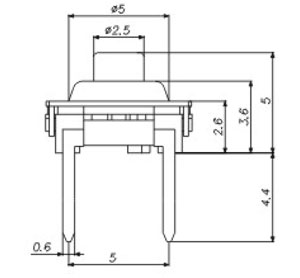

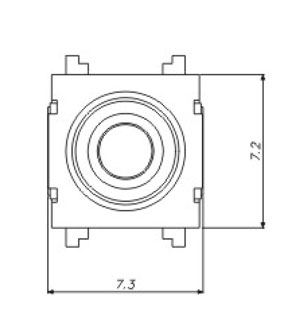

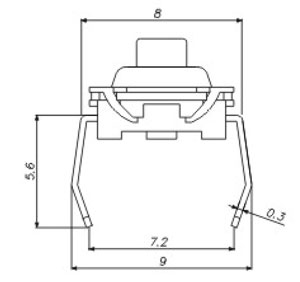

      RTS(M)(H)W Figure  RTS(M)(H)W Structure Diagram   Tactile Switches RTS(M)(H)W Structure diagram    Dust-proof Tactile Switches RTS(M)(H)W Structure Diagram



    Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Waterproof Grade Download
    RTSMW-7750 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 0.5±0.3mm 100,000 cycles IP6X NULL
    RTSHW-7750 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 0.5±0.3mm 100,000 cycles IP6X NULL
    RTSMW-7643 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 0.5±0.3mm 100,000 cycles IP6X NULL
    RTSHW-7650 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 0.5±0.3mm 100,000 cycles IP6X NULL
    RTSMW-7650 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 0.5±0.3mm 100,000 cycles IP6X NULL
    RTSW6-004 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 0.5±0.3mm 100,000 cycles IP6X NULL
    RTSMW-7366 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 0.5±0.3mm 100,000 cycles IP6X NULL
    RTSMW-7050 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 250±50gf 0.5±0.3mm 100,000 cycles IP6X NULL
