        The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

    The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.













    Dust-proof Tactile Switches RTS(M)(J)(H)(U)W-6










    •  Contact Resistance：100mΩ max


    •  Insulation Resistance：100MΩmin.500VDC


    •  Dielectric Strength：250VAC/1 min


    •  Electrical Life：500,000cycles min


    •  Storage Temperature：-30℃ to +80℃


    •  Contact Arrangement：1 pole 1throw

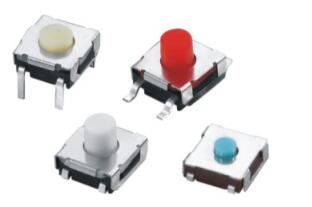

	            RTS(M)(J)(H)(U)W-6實拍圖
	輕觸開關結構圖  密封型開關結構圖   密封型輕觸開關側面結構圖


















                                Part Number
                                Contact Resistance
                                Insulation Resistance
                                Dielectric Strength
                                Electrical Life
                                Storage Temp
                                Contact Arrangement
                                Download




                                RTSMW-6
                                100mΩ max
                                100MΩmin.500VDC
                                250VAC/1 min
                                500,000cycles min
                                -30℃ to +80℃
                                1 pole 1throw

                    NULL




                                RTSJW-6
                                100mΩ max
                                100MΩmin.500VDC
                                250VAC/1 min
                                500,000cycles min
                                -30℃ to +80℃
                                1 pole 1throw

                    NULL




                                RTSHW-6
                                100mΩ max
                                100MΩmin.500VDC
                                250VAC/1 min
                                500,000cycles min
                                -30℃ to +80℃
                                1 pole 1throw

                    NULL




                                RTSUW-6
                                100mΩ max
                                100MΩmin.500VDC
                                250VAC/1 min
                                500,000cycles min
                                -30℃ to +80℃
                                1 pole 1throw

                    NULL
