    The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.
    The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.
    Horizontal Push Tactile switches RTP/RPTM

    •  Rating:12VDC 50mA
    •  Travel:0.13mm
    •  Life:100,000~300,000 cycles
    •  Contact Resistance:100mΩ MAX Initial
    •  Insulation Resistance:100mΩ min. 100VDC
    •  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
    •  Operating Force:A=180gf B=260gf
    •  Operating Temperature:-30℃ ~80℃

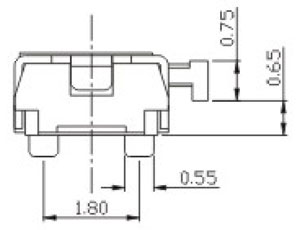

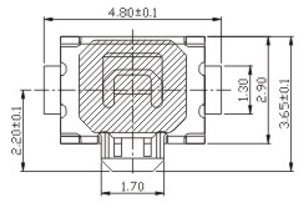

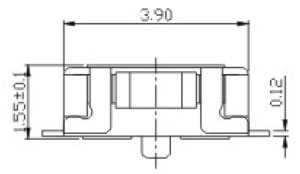

      Horizontal Push Tactile Switches Figure RTP/RPTM    Tactile Switches RTP/RPTM Structure Diagram    Switches RTP/RPTM Structure Diagram    Switch RTP/RPTM Structure Diagram



    Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Operating Temperature Download
    RTPA-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
    RTPB-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
    RTPU-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
    RTPS-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
    RTPF-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
    RTPML-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
    RTPMP-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
    RTPMN-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
    RTPMU-A/B-V 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN A=180gf B=260gf 0.13mm 100,000~300,000 cycles -30℃ ~80℃ NULL
