    Home ? Product Center ? Other ? Switch ? Tactile Switch ? RTS(M)(A)(T)(G)-6 ?
    The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.
    The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

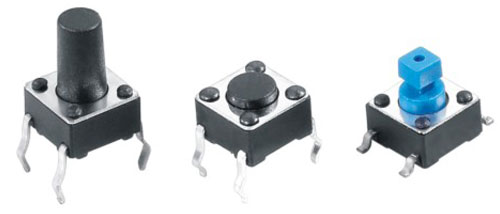

    6.2*6.2MM Tactile Switches RTS(M)(A)(T)(G)-6

    •  Rating:12VDC 50mA
    •  Travel:0.3mm
    •  Life:100,000 cycles~1,000,000 cycles
    •  ontact Resistance:100mΩ MAX Initial
    •  Insulation Resistance:100mΩ min. 100VDC
    •  Dielectric Strength:250VAC(50/60Hz)FOR 1MIN
    •  Operating Force:2=180gf 3=260gf
    •  Operating Temperature:-20℃ ~70℃

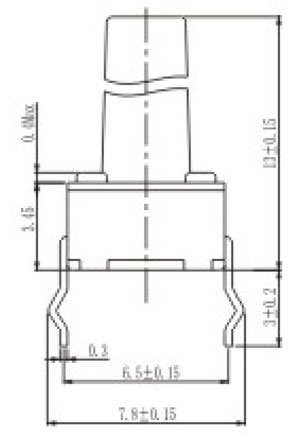

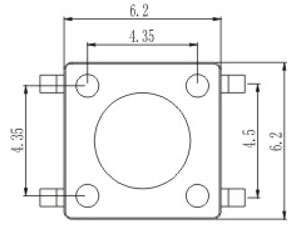

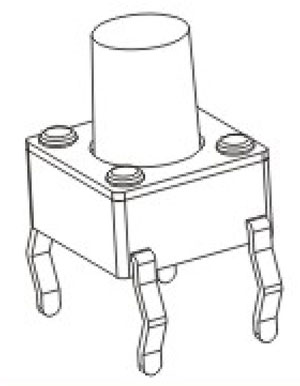

    6.2*6.2MM Tactile Switches Figure RTS(M)(A)(T)(G)-6 Tactile Switches Structure Diagram RTS(M)(A)(T)(G)-6    6.2*6.2MM RTS(M)(A)(T)(G)-6 Structure Diagram   6.2*6.2MM Switches Structure DiagramRTS(M)(A)(T)(G)-6



    Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Operating Temperature Download
    RTS-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
    RTSA-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
    RTSA-64 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
    RTSAL-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
    RTSAM-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
    RTSM-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
    RTSM-64 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
    RTSTL-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
    RTST-6 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 2=180gf 3=260gf 0.3mm 100,000 cycles~1,000,000 cycles -20℃ ~70℃ NULL
